Hardware

    An Arduino development board embed all the components of the lock. You will find below a detailed list of all the components you need to buy:

    Components of the lock

    1. An Arduino Ethernet or an Arduino Uno with an Ethernet Shield
    2. USB Serial Adapter if you don't use the Arduino Uno
    3. An Arduino development board (Proto Shield)
    4. An RFID reader RDM6300
    5. 4N35 optocoupler with a socket
    6. Three resistors 220 ohm
    7. A resistor 68 ohm
    8. A buzzer
    9. A red LED and a green LED
    10. Various cables to connect everything on the development board.
    11. A Micro SD card
    12. 1x 3 pin and 1x 5 pin 2.54mm Female Header
    13. 3x 3-pin terminal

    Of course, you will also need welding equipment :-)

    Pictures of the components

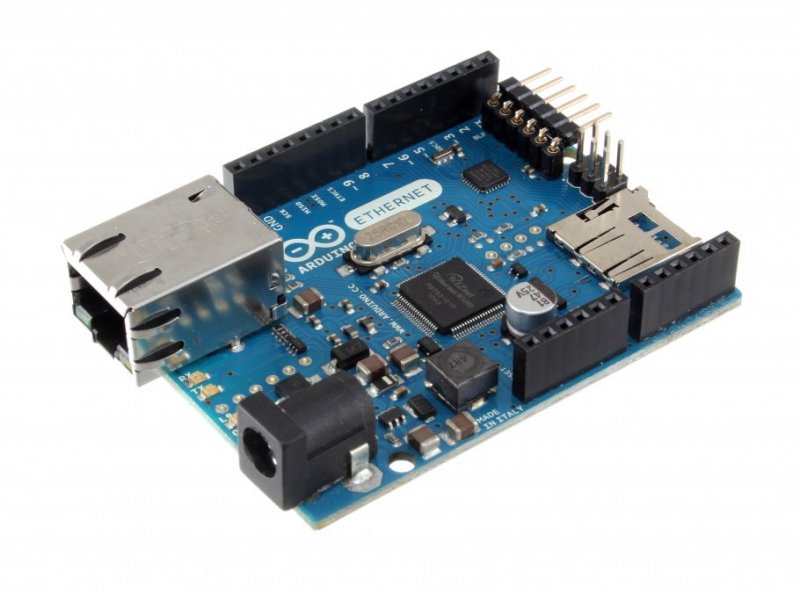

    Arduino Ethernet

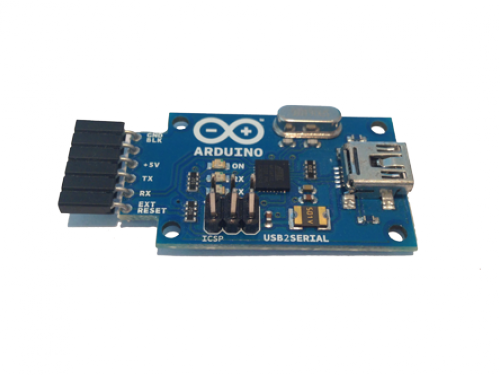

    Arduino USB Serial Adapter

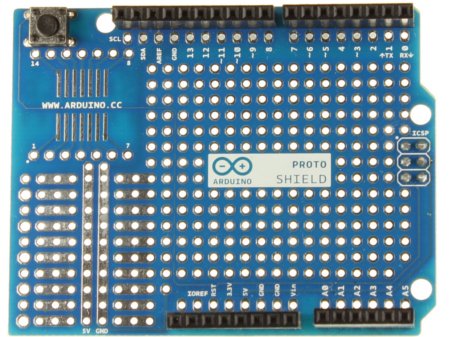

    Arduino Proto Shield

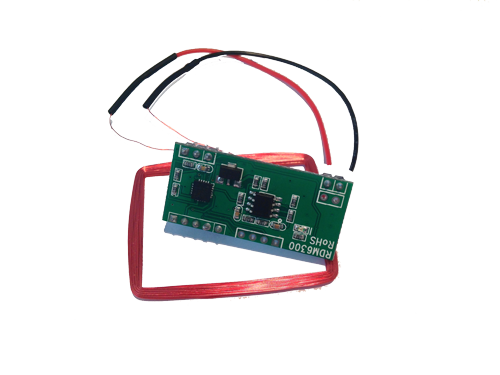

    RFID reader RDM6300


    3x 220 Ohm resistor

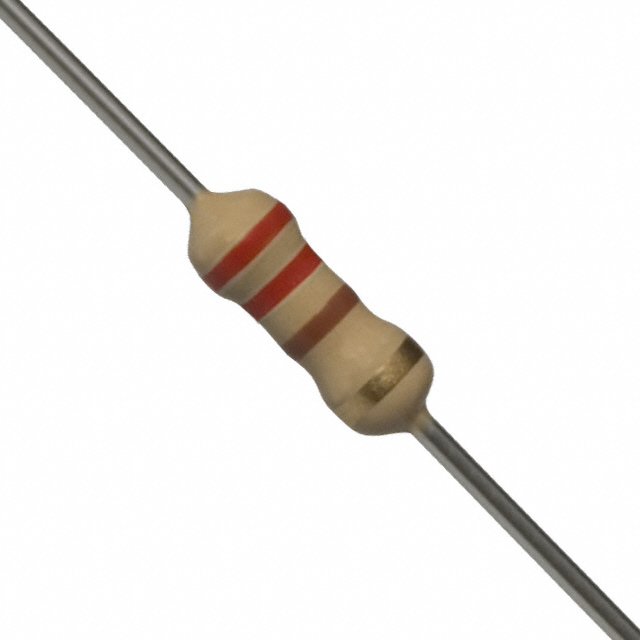

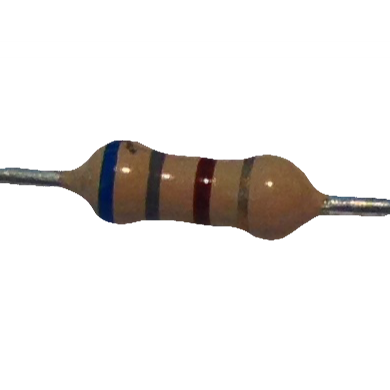

    68 Ohm resistor

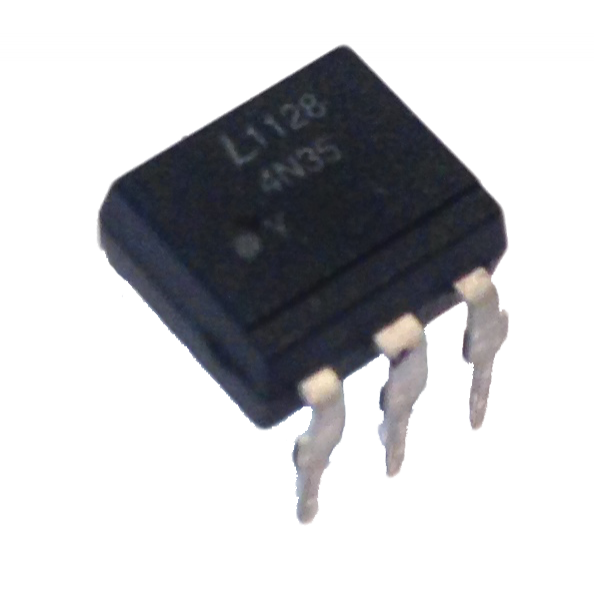

    Optocoupler 4N35


    Socket for the 4N35

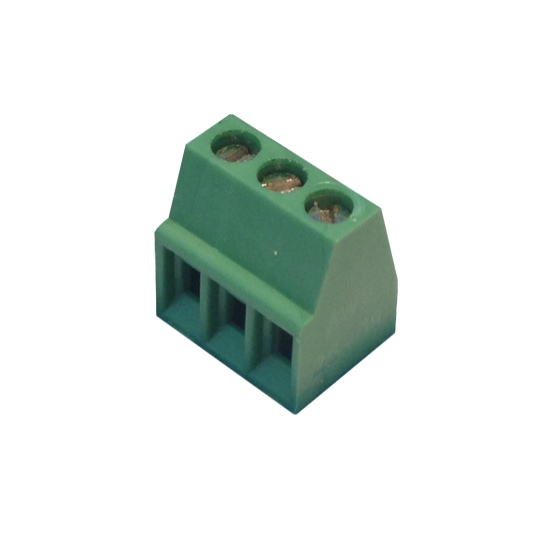

    3x 3-pin terminal

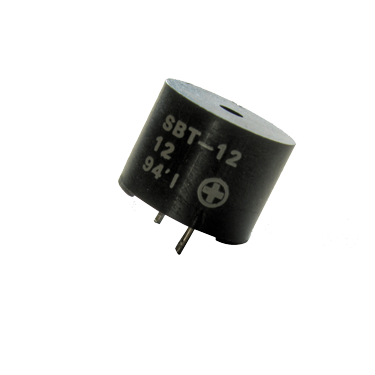

    Magnetic buzzer

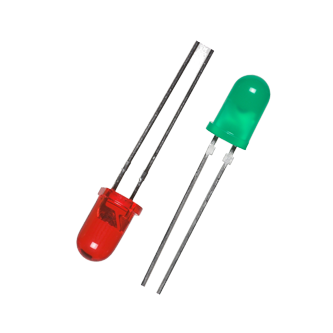

    Green and red LEDs

    2.54mm Female Header
    2.54mm Female Header

    Female Header

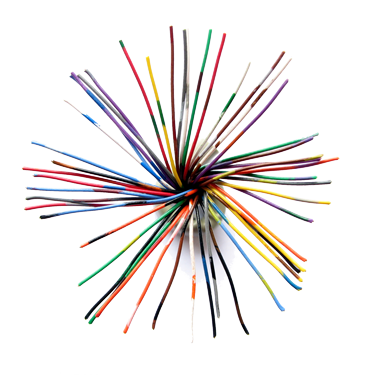

    Cables several colors

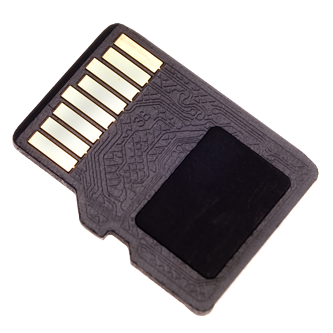

    Micro SD Memory Card

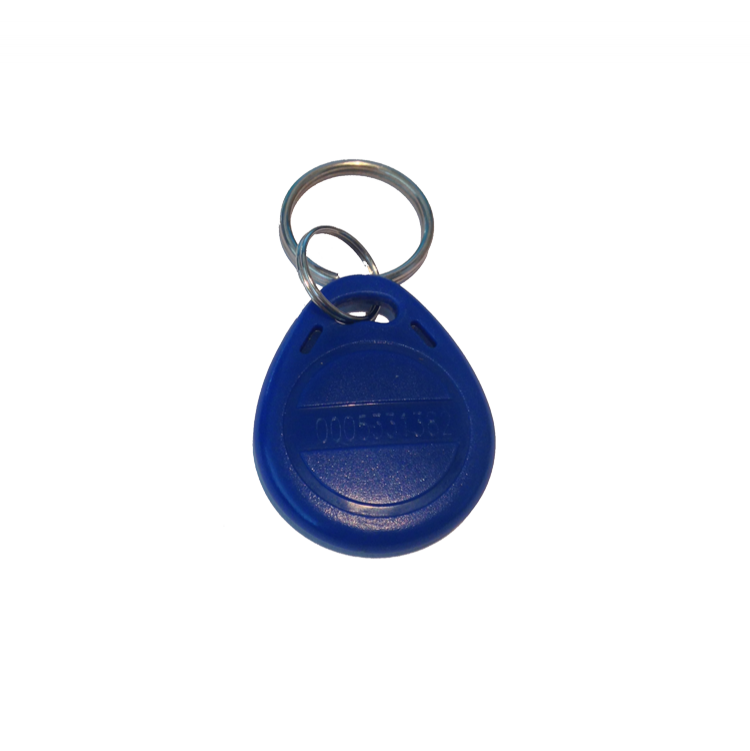

    Some RFID tags

    Price

    The price depends on the hardware you have already own. If you have to purchase all the elements of the lock, the total price will be between 110$ with original Arduino hardware and 50$ with Arduino copy.
